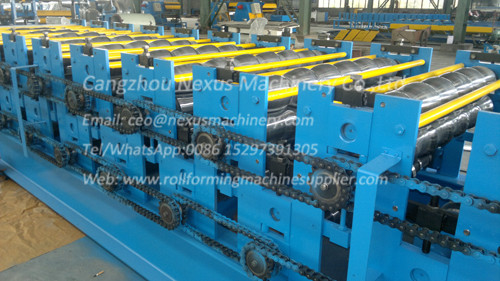

Double layer metal roof roll forming machine can produce two different shapes with one machine.
It means that we will combine two different roof roll forming machine together, you will not need change any rollers or cutter. What’s more, we can combine the corrugated wave roof, glazed roof, trapezoid roof together as you need.
Some combinations for you to choose:
Specification for double layer metal roof roll forming machine | |
Main power | 7.5Kw |
Structure | Middle plate |
Roller station | 14/16 rollers (according to the profile drawing ) |
Roller material | 45#advanced steel, heat treatment HRC58-62,
chrome coating |
Shaft material | 45# advanced steel |
Shaft diameter | Φ80 mm |
Speed | 8-12m/min(not including cutting time) |
Material of blade | Cr12Mov |
Tolerance | ±1.0mm |
PLC brand | Delta |
Hydraulic power | 4Kw |
Machine size | 7500*1450*1600mm L*W*H |
Machine weight | 6.5t |
