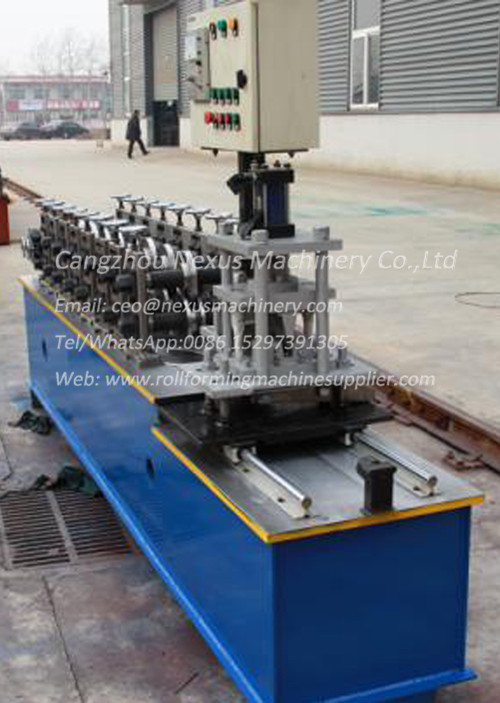

Production flow of cassette light frame roll forming machine：
Decoiler--- leveling--- beach ----punching machine---- coil feeder---- roll forming machine----- shearing system run-----out table
Cassette stud is made of light frame, it is used to be the main material of suspended ceiling, also it is the link of cassette to fix stud. Therefore, it connect stud with ceiling floor makes stable in a large part.
Characteristics of cassette light frame roll forming machine:
1.High efficiency, it can run with 20-25m/min speed.
2.Perfect appearance, yellow and blue is main color for machine. The machine looks strong and portable.
3.Easy to operate and load, we simplify degree of difficulty in machine operation. User can operate machine very well even if he is not understand machine. It likes an intelligent robot.
Cassette light frame roll forming machine Main specification：
| Description | Introduction | Customer needs |
| Working efficiency | 5-10m/min | |
| Thickness of Material | 0.5-1.2mm | |
| Control system | PLC | Delta |
| Forming by rolling | Roll 16 rows | |
| Roller material | Gcr12MoV quenched | |
| Shaft and the diameter of axle | 45#Aluminium processing diameter of axle=￠50mm |
|
| Main part power | 7.5kw | |
| Hydraulic motor power | 3kw | |
| Scissor material | Gcr12MoV quenched | |
| length tolerance | 3m±1.0mm | |
| Driving Method | Chain | |
| Color | Yellow and blue | （adjustable） |
| Working Size | length*Width*Height | |
| Punching machine | Gcr12MoV quenched |
